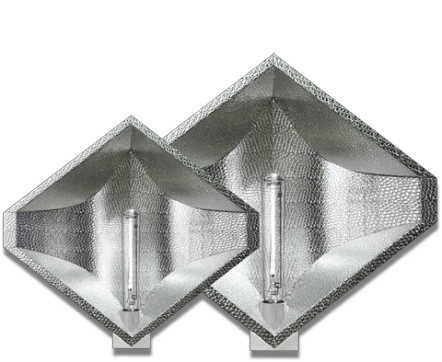

The Ecotechnics Diamond Reflector.
The Diamond reflector puts down more light than any other
horizontal lamp reflector on the market.
When compared to standard Dutch Barn type reflectors it can help
to increase yields significantly.

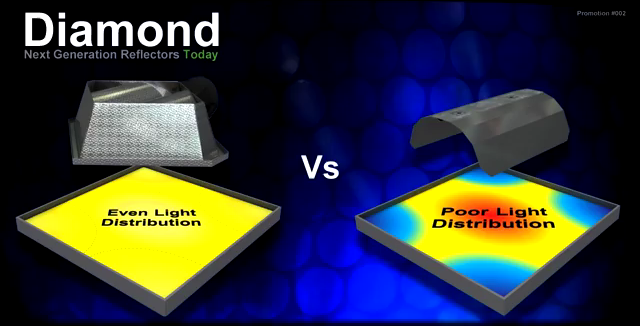

The Diamond Reflector was designed in a photometric laboratory to the spread of light from the lamp and scientifically
optimised. You can visibly see the difference between the amount of usable light being reflected by the Diamond and that
being put down by inferior reflectors, but the best way to see how good this reflector is to buy one and trial it along side
another brand, you'll be pleasantly surprised at the results.
The small version is suitable for both 250W and 400W sodium and halide lamps and measures 50cm x 54.5cm x 12.5cm.
The larger version takes up to 600W sodium and halide lamps and measures 60cm x 65cm x 17.5cm.
Installing your Reflector above your plants:
The minimum safe distance between your lamps and the top of the plants below are as follows-
250watt HID lamp: minimum 20cm
400watt HID lamp: minimum 50cm
600watt HID lamp: minimum 60cm
PowerStar Power Contactors.
Click on graphic for larger image

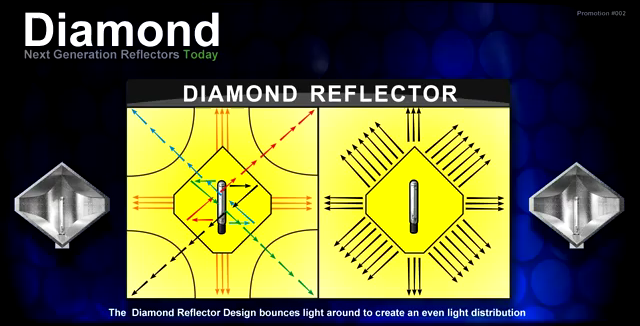

Diamond Reflector Overview:
Related Products
Lighting
Air-Cooled Diamond Reflector
Product Feature Area
Compatible Lamps for
Diamond Small
250w, 400w, 600w
Compatible Lamps for
Lamps for Diamond Large
250w, 400w, 600w,750w,1000w

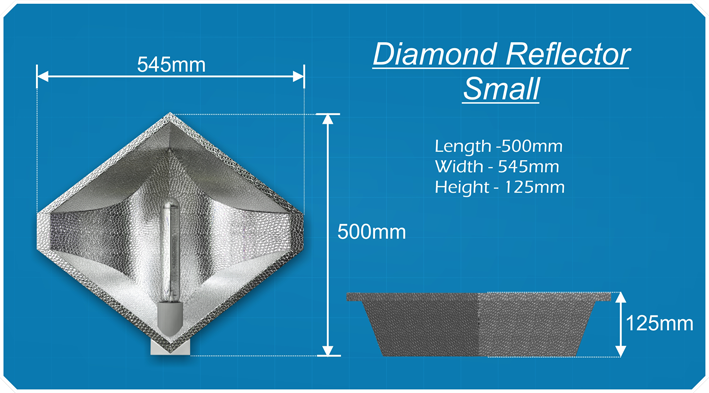

Reflector Dimensions
PDF
Diamond Reflector
Information PDF

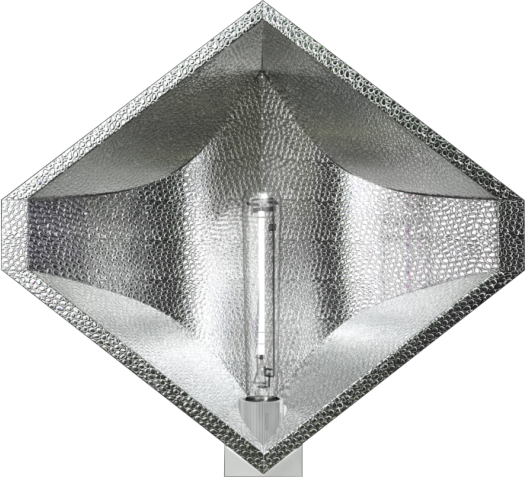

Ecotechnics Small Diamond Reflector
Small Diamond 50x55x13cm
The Diamond reflector puts down
more light than any other horizontal
lamp reflector on the market.
when compared to a standard Dutch
Barn type reflectors it can help to
increase yields significantly.
note: Lamps not included
Compatible HID Lamps:
250w - small Diamond
400w - small Diamond
Small Diamond Reflector
Ecotechnics Large Diamond Reflector
Large Diamond 60x66x16cm
The Diamond reflector puts down
more light than any other horizontal
lamp reflector on the market.
when compared to a standard Dutch
Barn type reflectors it can help to
increase yields significantly.
note: Lamps not included
Compatible HID Lamps:
250w - large Diamond
400w - large Diamond
600w - large Diamond
Large Diamond Reflector
Air-Cooled Diamond Reflector
Ecotechnics Air-Cooled Diamond
Air cooled Diamond 64x66x16cm
The Diamond reflector puts down
more light than any other horizontal
lamp reflector on the market.
when compared to a standard Dutch
Barn type reflectors it can help to
increase yields significantly.
The spigot on the air Cooled Diamond
is 150mm in diameter.
The Air Cooled Reflector's Lamp holder
is also adjustable for placement of the
lamp within the Reflector by 75mm
note: Lamps not included
Compatible HID Lamps:
250w - Air-Cooled Diamond
400w - Air-Cooled Diamond
600w - Air-Cooled Diamond
